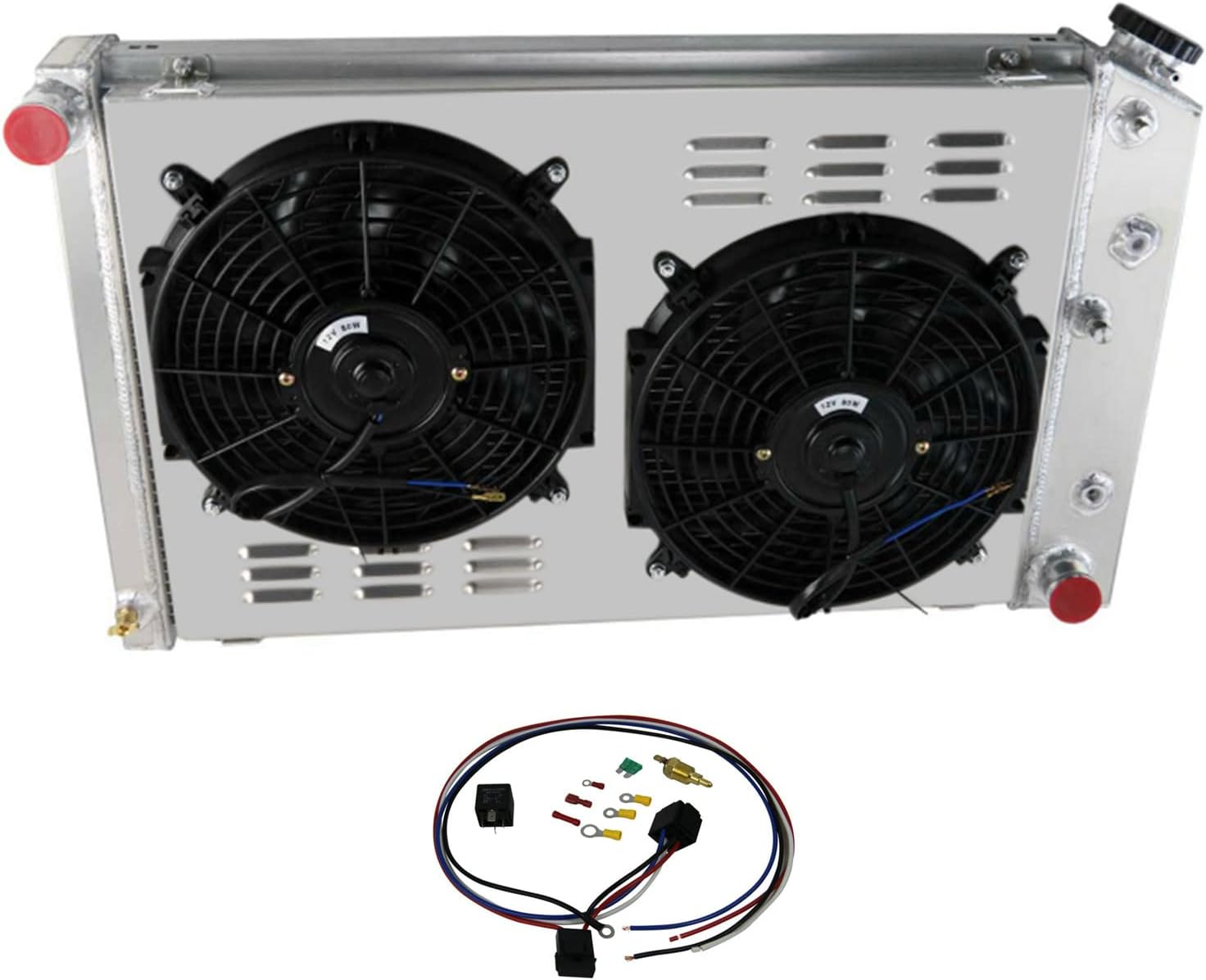

3 Row Aluminum Radiator with 2 X 12 Fan and Shroud Z866
3 Row Aluminum Radiator with 2 X 12 Fan and Shroud Z866

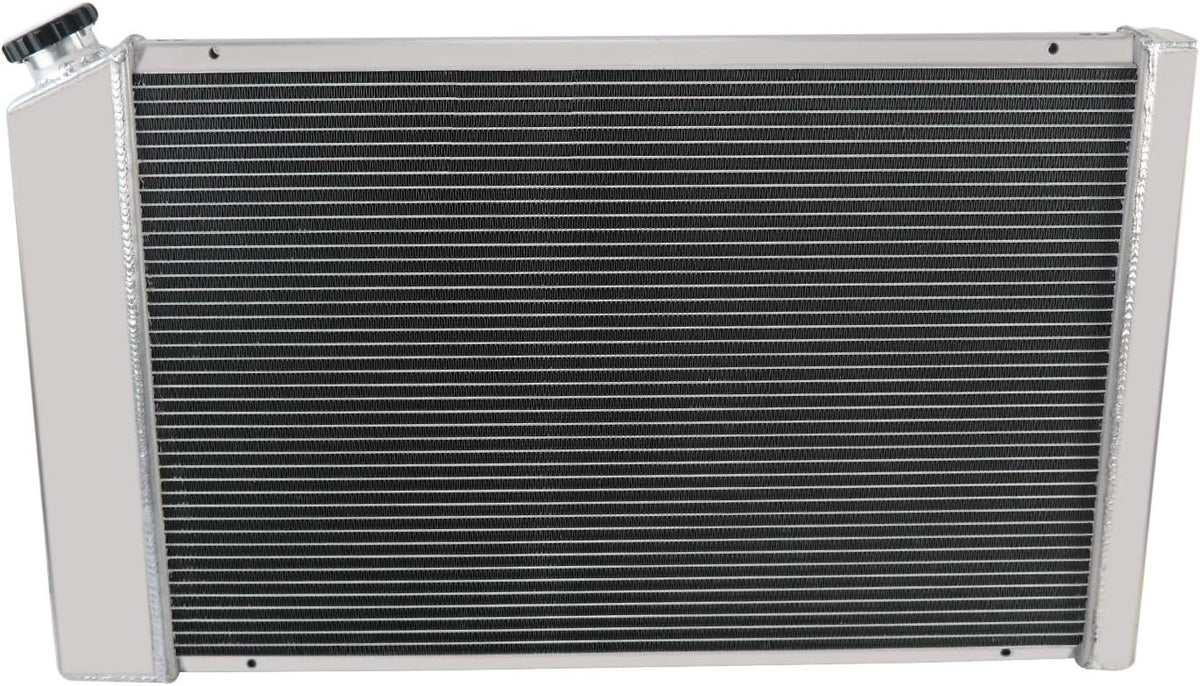

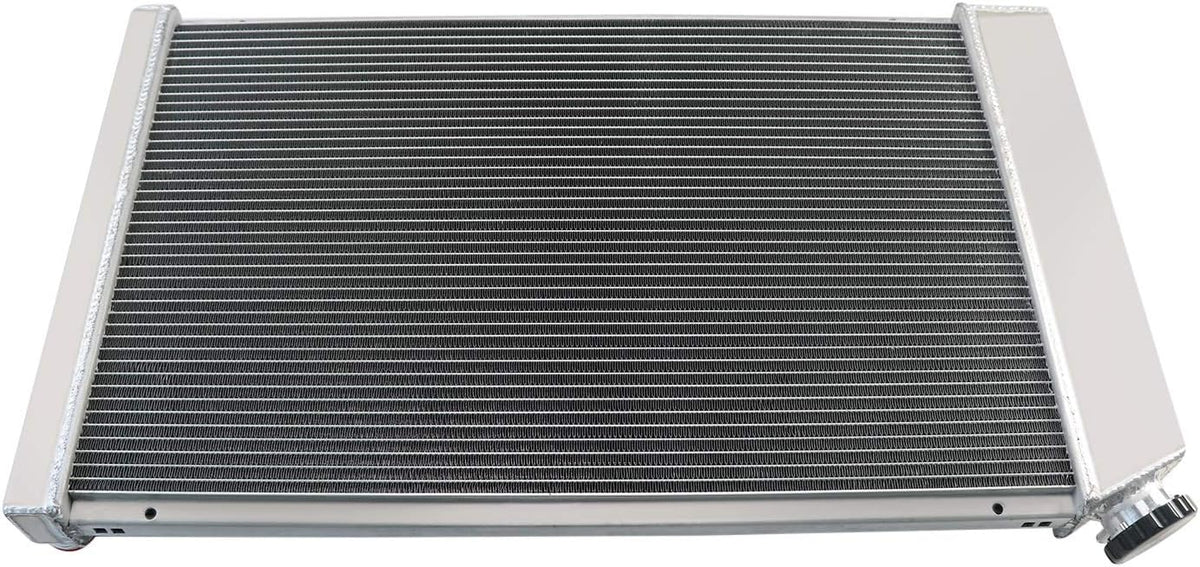

Core Size: 17' H x 26-1/4' W ; Overall Size: 18-1/4' H x 31-5/8' W
Inlet/Outlet: 1-1/2' located on the Driver side; 1-1/2' located on the Passenger side
Trans Cooler Included -1/2' 20 STRAIGHT THREAD G1/4-
Carefully crafted to exceptional OE standards for precise fit

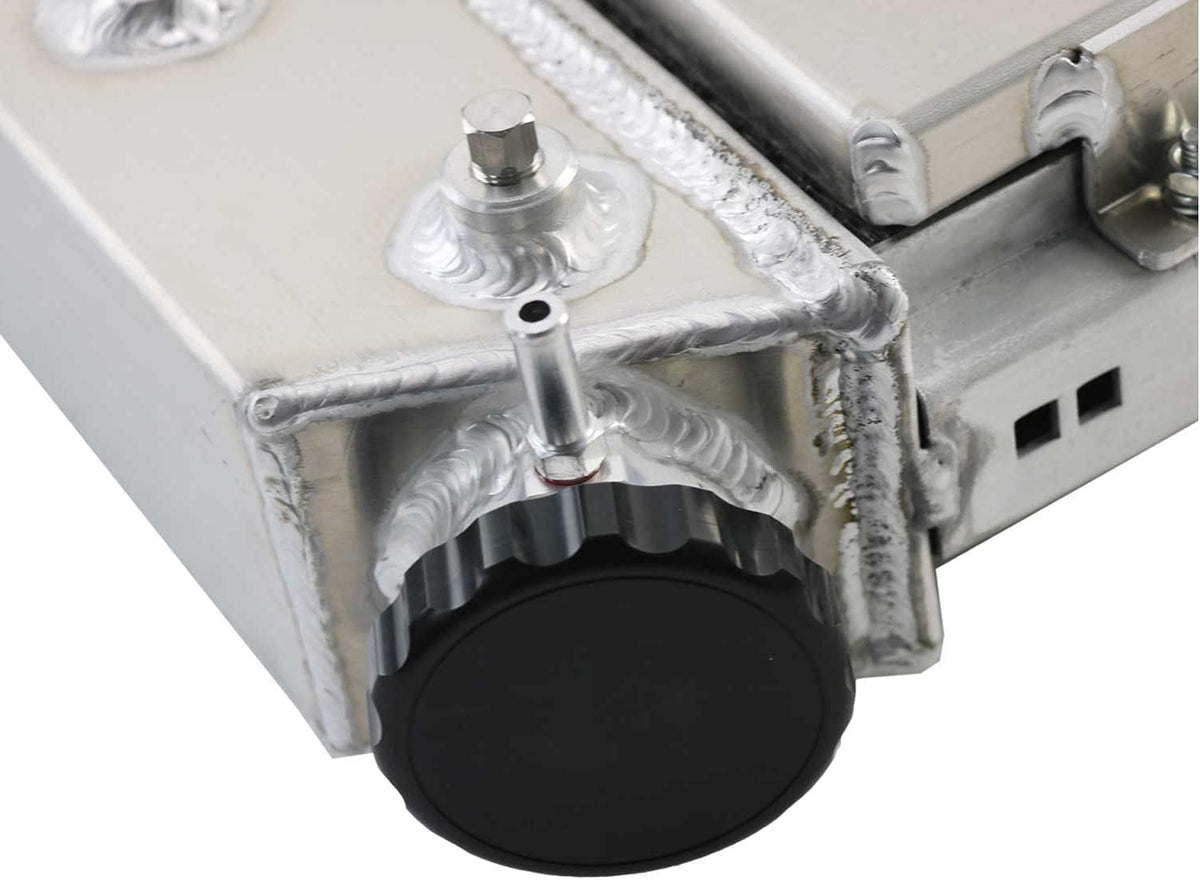

CNC machined filler neck and cap
Radiator Specification
3-Row of tubes Core Racing Design
Core/Tank Material: Full Aluminum
Mount Type: Saddle
Surface Finish: Aircraft Grade Raw Aluminum

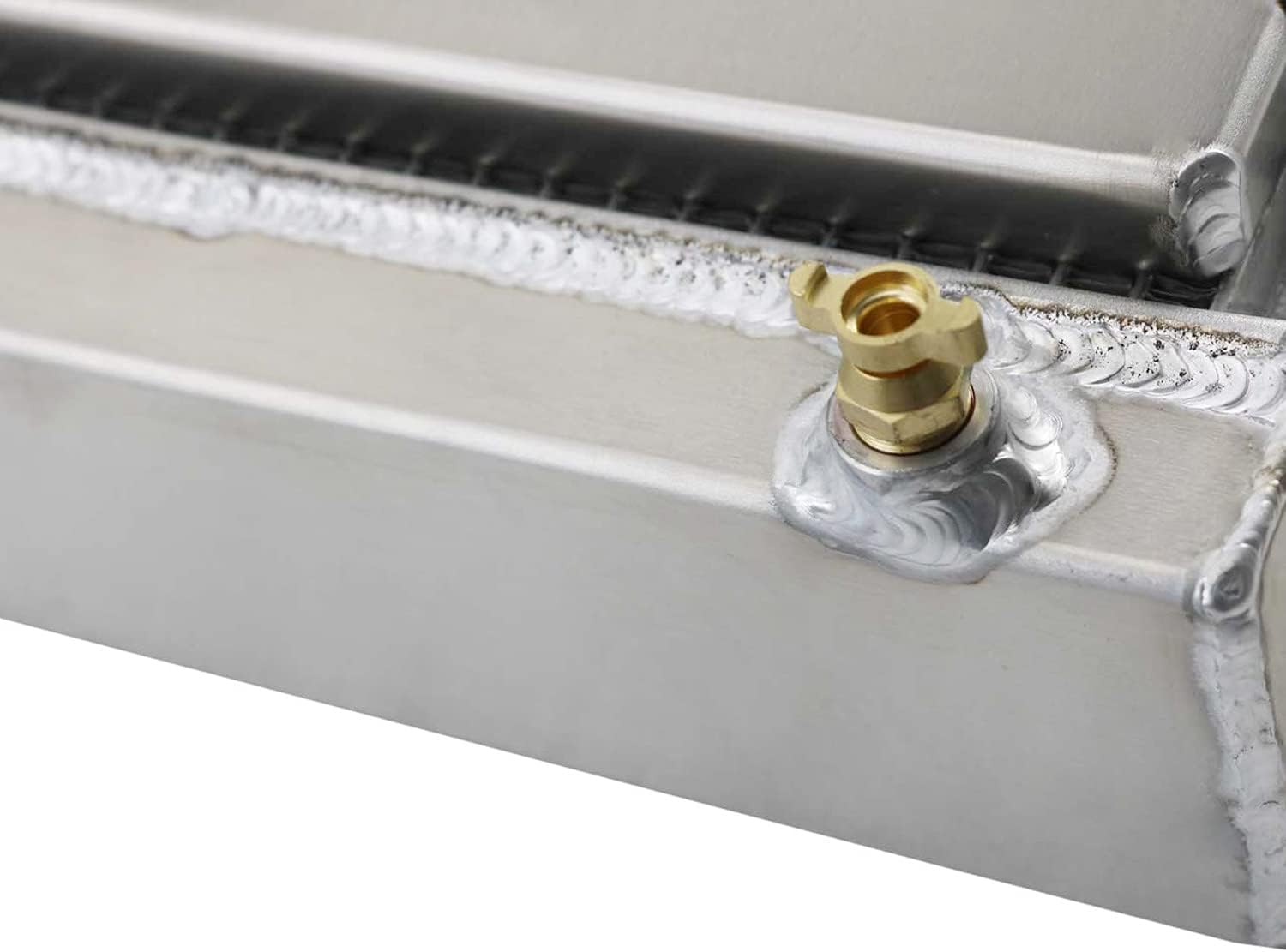

OEM style brass petcock drain
Includes Radiator Pressure Billet Cap
Billet fill neck and fittings, NOT STAMPED

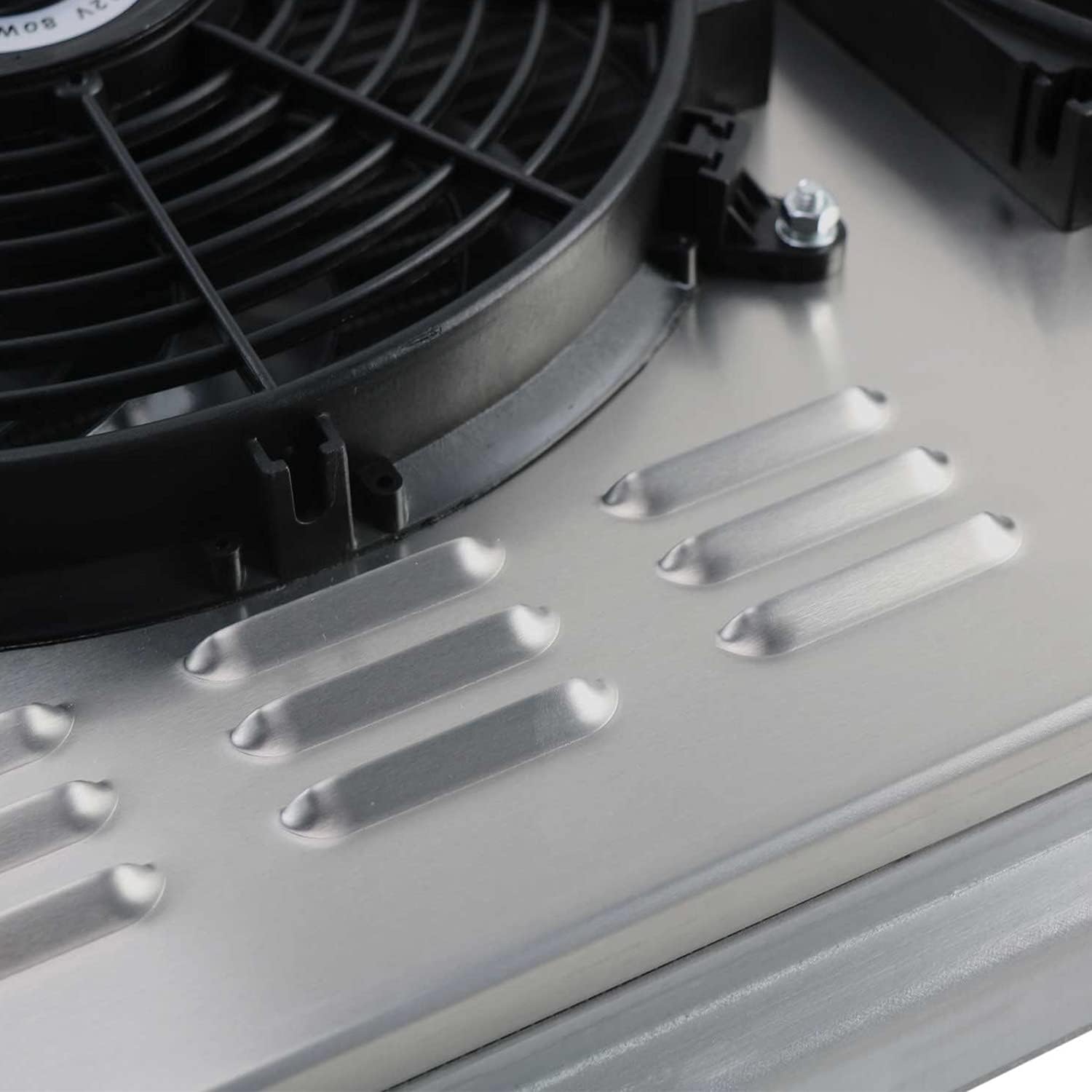

Fans Details
Aids to Cool the Entire Engine Bay, including Radiator, A/C System, Intercooler, Oil System, and Transmission
Performance JDM Spec. Racing Design
OE Fitment or Replacement, Push or Pull Type
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 12.050”
Thickness (in): 2.500”
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpma
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation

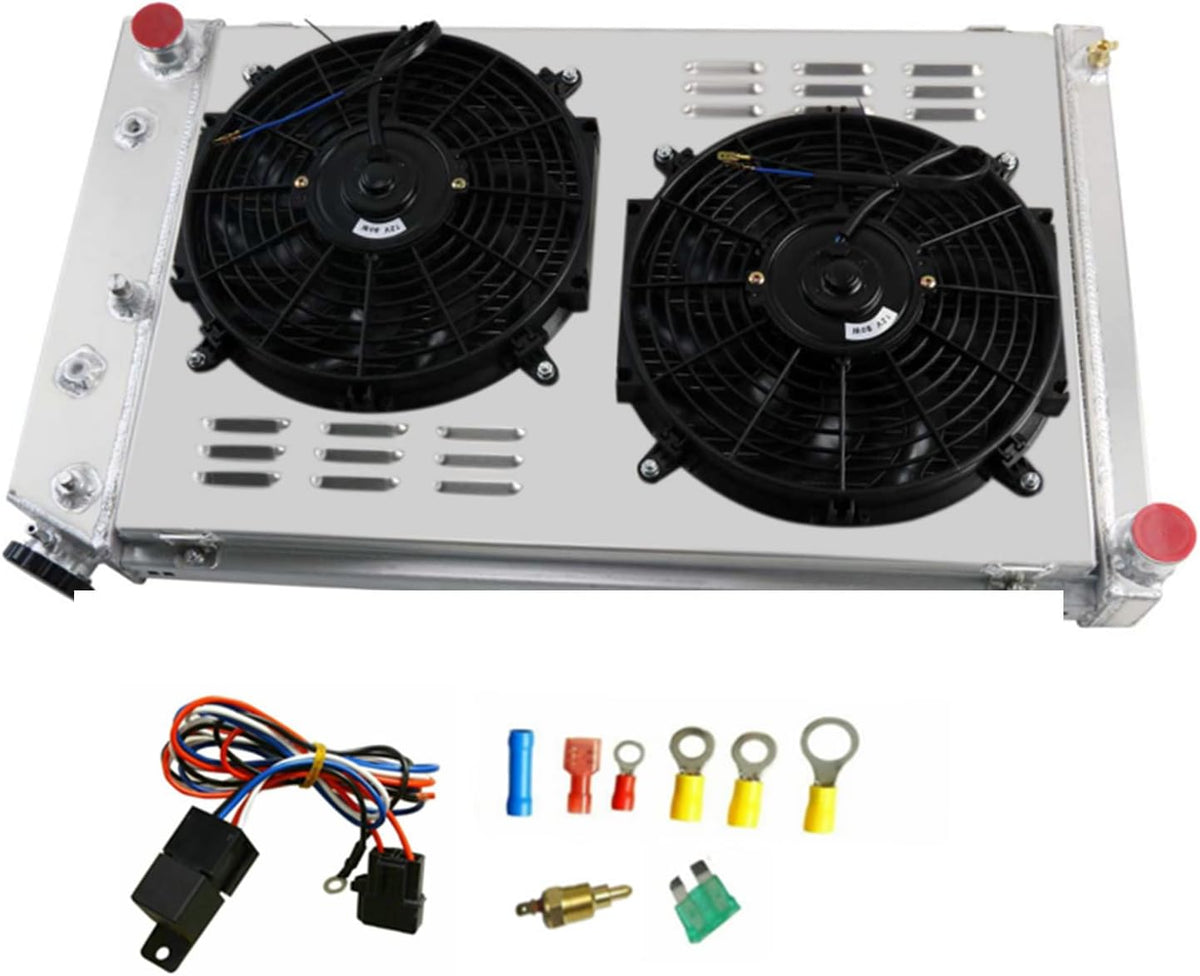

Relay Kit Instructions
RED + connect directly to battery
WHITE wire to ignition switch power source
BLACK goes to thermos switch
BLUE wire goes to the Fans
Part Number: 162, SBR162, DPI162, CC162, CU162, KKS162, 162, 8010162, 1605-370064, 40387, REA41162A, 2511, 162, 8010162, 1605-370064, 40387, REA41162A, 2511
This Radiator Compatible With
Chevy Impala Blazer GMC Jimmy 1973-1980
Chevy Monte Carlo 1970-77/Chevy Impala 1971-1979
For Chevy K5 K10 Blazer 75-80/Cutlass Supreme 74-77
For Chevy Caprice 1971-1990/Chevelle/GM 28' 66-80
Cadillac Fleetwood/Brougham 1965-1974
Chevy Chevelle 1968-1973/Chevy El Camino 1968-1977
Oldsmobile Delta 1968-1988/Pontiac 1968-1970
Cadillac Olds Cars / Buick Skylark 67-72
Olds Cutlass and Cutlass Supreme 66-77
Direct Fit for Easy Installation
Direct Bolt-On OE Fitment or Replacement.
Notes: Installation instruction is not included. Professional installation is highly recommended!
